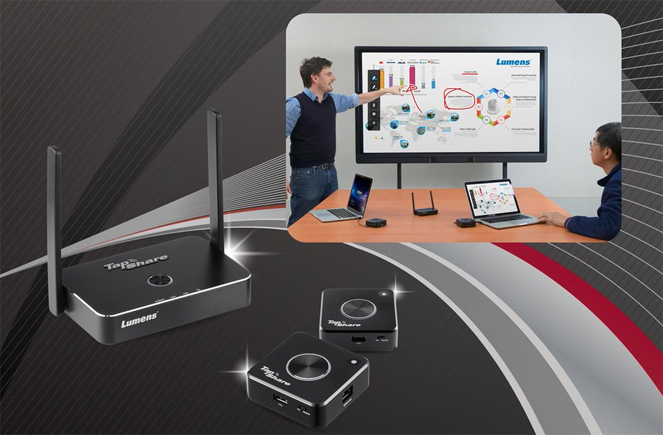

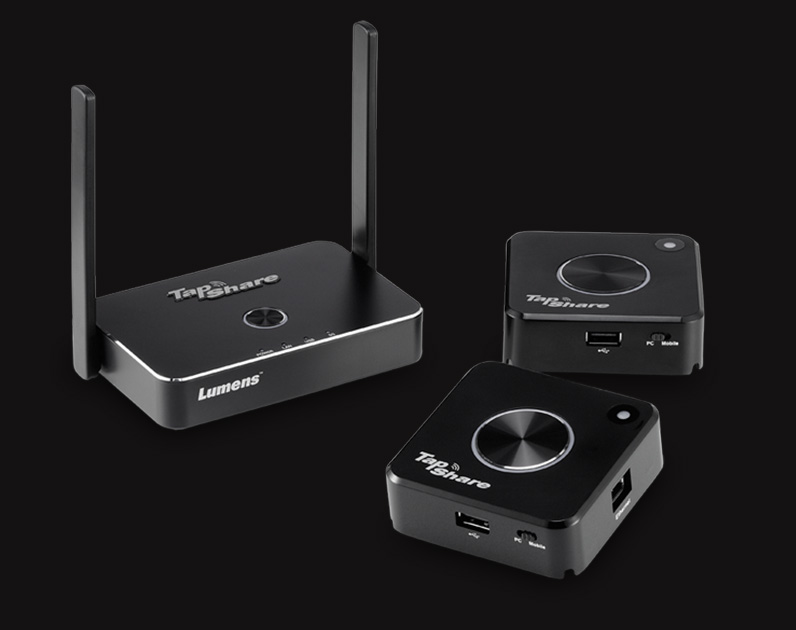

Lumens TapShare TS20 wireless presentation system integrates advanced 802.11ac with 5G Wi-Fi to provide a smooth wireless collaborative presentation experience. The TapShare™ is easy to install since there are no required cables, drivers and software. It has a built-in multiple interfaces including HDMI, MiniDisplay port, USB and Ethernet; furthermore, compatible with all HDMI sources and displays. Additionally, it supports ‘’Split Screen Display” with up to four screens so that team members can share ideas simultaneously. Lumens TapShare™ can be used in classrooms, meeting rooms, auditoriums, etc.
The TapShareTM is plug & play and doesn’t need additional software or a driver.
With one single button and Wi-Fi support, you just tap the button to start presenting immediately. Especially for the iOS devices, simply plug one cable to share your ideas instantly.
The TapShare allows four input sources from a laptop or mobile devices and supports ‘’Split Screen Display” so that team members can share ideas simultaneously.
The TapShareTM supports PoE and up to 100m (328ft) distance that replaces the HDMI and switcher so that it’s applicable for large meeting rooms.
The laptop screen can be displayed synchronously with any annotation on the touch screen so that the presenter can present smoothly and efficiently.
With an advanced host control system, the host can easily manage the display and content from different sources.
With the need for high security, the TapShareTM supports not only a wired connection but also with an encrypted technology for wireless transmission.
TapShareTM allows any input devices with HDMI and display port such as a PC, laptop, tablet or smartphone. It’s compatible with 4K resolution devices.
| Video Input | HDMI In x1, Mini Displayport x1, USB port x1 |
| Video Ouput | HDMI Out x1, Up to 4096 x 2160p 24Hz, 3840 x 2160p 30Hz, 1920 x 1080p 60Hz |
| Power Supply |
Box: DC Power Input or PoE(IEEE 802.3AT), Pod: USB 2.0 bus power or PoE(IEEE 802.3AT) |
| Display Mirror Path | LAN / Wi-Fi |
| LAN | Giga Ethernet x1 (PoE) |
| Wi-Fi | IEEE 802.11ac |
| Authentication Protocol | Wi-Fi 802.1x WPA / WPA2 |
| Host Control | Yes |
| Supports Airplay | Yes |
| Supports iOS / Android Wired Mirror | Yes |
| Reverse Control for Touch Panel | Yes |
| Number of Simultaneous Sources on Screen | 4 |
| Simultaneous Connections | 64 |
| Power Requirement | Box: 5V/2A, Pod: 5V/1A |
| Dimensions (WxHxD) | Box: 140 x 85 x 25 mm 5.5" x 3.3" x 0.9", Pod: 80 x 80 x 25 mm 3.1" x 3.1" x 0.9" |
