Lecture Recording and Live Streaming System

• Improved Learning Opportunity for Students
• Stream Live from Anywhere
• Highest Quality Recording
• Improved Learning Opportunity for Students
• Monitor students’ engagement

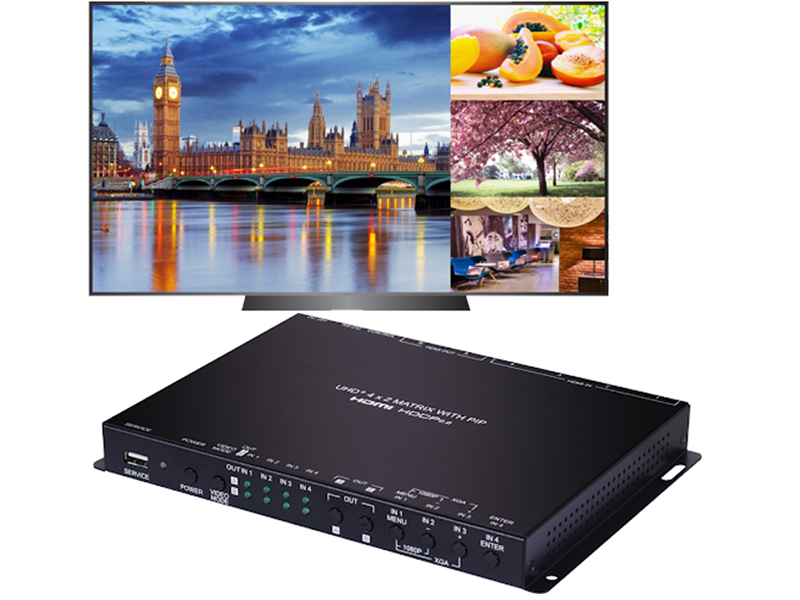

UHD+ 4 x 2 HDMI Matrix with PiP - CPLUS-V4H2HPIP

This 4 by 2 Matrix is a hig-performance HDMI switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz and LPCM audio up to 7.1 channels and 192kHz are supported on both input and output and this unit is fully compatible with the HDCP 1.x and 2.2 standards. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode and Pip, PoP with the output being sent to 2 HDMI outputs. Management of input/window routing, position and sizing can be controlled easily by use of the front panel controls as well as by WebGUI, RS-232, Telnet, options.

• HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
• Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode
• Supports PiP, PoP, quad mode display options with independent audio source selection
• Supports the ability to store a multi-window arrangement as a preset that can be recalled later
• Each window can have a border with a selectable color
• Uploadable and freely positioned graphic logo support, EDID management

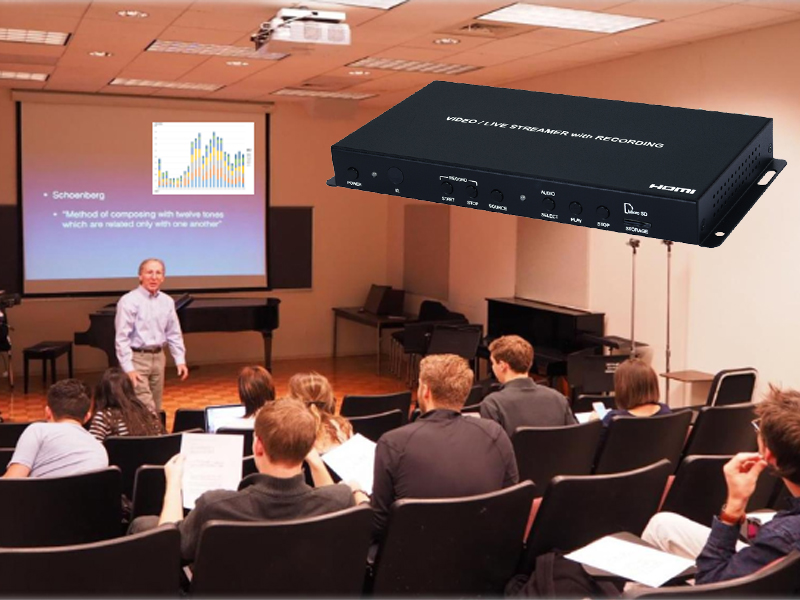

HDMI/VGA to HDMI Live Video Streamer with Recording function - CDPS-P311R

This Video Streaming Recorder makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring of the selected input source. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a wonderful tool for video streaming and recording.

• HDCP 1.x and HDCP 2.2 compliant, Can act as a streaming server or streaming client
• Advanced H.264 video streaming and recording is provided at QVGA (320×240), VGA (640×480), 720p, or 1080p at up to 60fps
• Recorded video can be stored on the locally inserted SD card, USB storage, or to a designated network drive supporting file system FAT32, EXFAT, NFS, and CIFS
• Integrated support for live streaming to Facebook, YouTube or Twitch channels
