Lumens CaptureVision System LC200 is an innovative media processor that allows you to record and create live streaming by mixing, encoding , and switching up to 4 HDMI or 3 IP video sources, and 4 audio sources. The LC200 can backup video files to a content management server or stream to most cloud video servers. It is applicable for use in education, corporate, government, healthcare, house of worship, and other applications.
Just one stand-alone device allows you to mix four video sources, record, stream, and live-switch simultaneously, which is perfect to serve as the core system for your video project. The LC200 supports Full HD 1080p video and audio recording with gorgeous high definition images and crystal clear audio, which is excellent for lecture capture, conference recording and event streaming. It supports popular streaming platforms and content management systems such as Youtube, Facebook, Kaltura and Panopto.
The powerful function allows users to get control of their recording and streaming content. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background and generate a decent video while streaming.

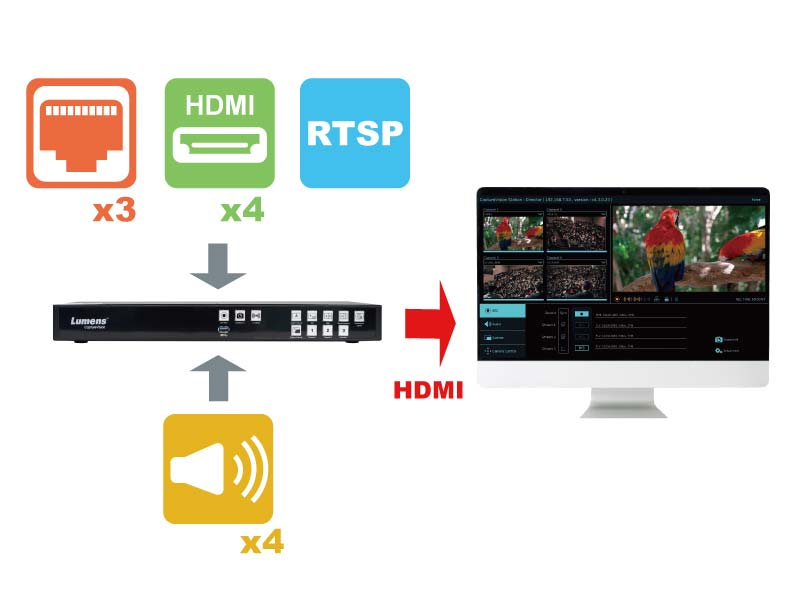

The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide a complete audiovisual experience to your viewers! Furthermore, programmed video can directly show on a HDMI display without any device in between.

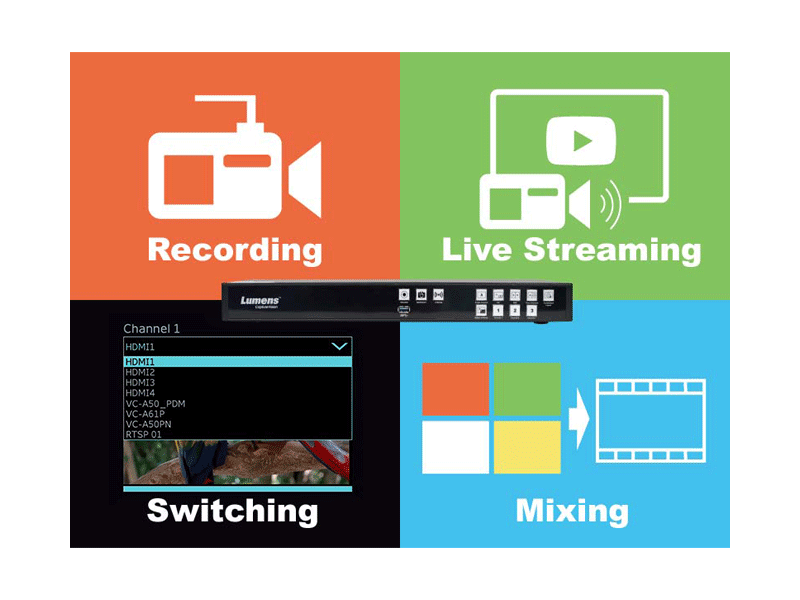

Lumens LC200 CaptureVision Station is an all-in-one media processor. Just one stand-alone device that allows you to mix four video sources, recording, streaming, and live-switching simultaneously; perfect to serve as the core system for your video project.

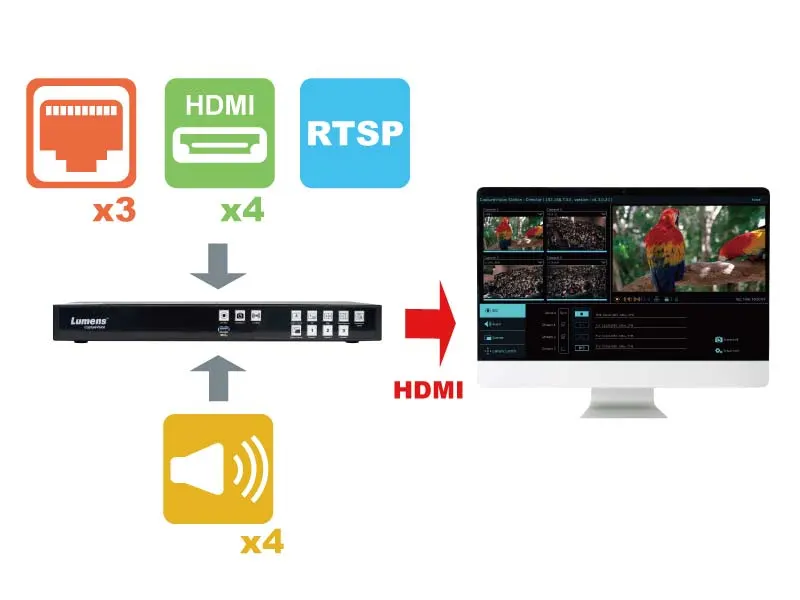

The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide complete audiovisual experience to your viewers!

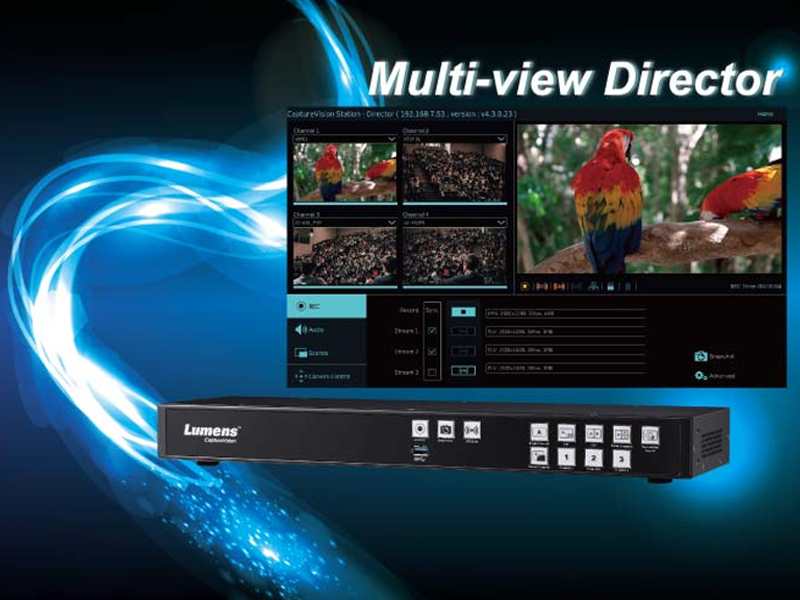

The LC200 records not just the program-out video but also records four independent channels video as well with gorgeous high definition images and crystal clear audio, which also makes your post-production much easier.
The LC200 has a built-in 1 Terabyte hard drive that can store up to 500 hours of video. You also have options to upload your recordings to an external USB device or the FTP server.
The powerful function of advanced scenes switch, helps you capture the attention of your viewers and increase audience engagement in your event. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background.
Through Outlook or Google calendar, you can schedule your important events to create, record and stream your video content.
The LC200 integrates with several content management systems like Panopto, Kaltura, and Opencast,etc. which are great applications for enterprise video and school lectures.
Live streaming is a powerful tool. The LC200 can live stream up to three destinations like YouTube, Facebook, Twitter or twitch.
| VIDEO INPUT | |
| Number/Signal | 4 HDMI digital video |
| Connection | 4 female HDMI type-A |
| Resolution Range | 480i~1080p 60fps |
| IP Source | Lumens IP PTZ / Box Cameras RTSP Source (H.264 1080p 60/30fps) |
| VIDEO PROCESSING | |
| Video Compression | H.264/AVC 4:2:0 8bit color Encoding profile: High, Main, Baseline |
| Bitrate | 200 kbps to 10 Mbps |
| VIDEO OUTPUT | |
| Number/Signal | 3 H.264/AVC digital video over Ethernet 2 HDMI digital video |
| Scaled Resolution | 1080p |
| Frame Rate | 30 / 60 fps |
| AUDIO INPUT | |
| Number/Signal | 4 Line In/MIC In (stereo, 3.5mm phone jack) 4 stereo, digital de-embedded audio from HDMI IP Audio Source (RTSP, AAC-Raw, 16K/44.1K/48K) |
| AUDIO PROCESSING | |
| Compression | AAC-LC |
| AUDIO INPUT | |
| Number/Signal | 1 stereo, unbalanced 3.5mm phone jack 2 stereo, digital de-embedded audio from HDMI |
| COMMUNICATION | |
| USB | 2 rear panel USB 2.0 type A Supports USB mouse, keyboard |
| Serial Control | RS-232 /RS-485 port |
| ETHERNET | |
| Ethernet Host Port | 1 female RJ-45 10/100/1000 Base-T high/full duplex |
| Streaming Protocol | Pull: RTSP Push: RTMP / RTMPS / MPEG-TS TCP, UDP, HTTP DHCP Client |
| FUNCTIONS | |
| Supports IP Sources | Lumens IP Cameras, RTSP |
| Scenes Switch | Yes, preset for layout, background, and overlay |
| Layout Switch | Yes,( Single, PIP, PBP, 3 and 4 windows layouts) |
| Background Switch | Yes |
| Overlay | Yes |
| File Backup | FTP / SFTP / USB Flash Drive |
| GENERAL | |
| Power Supply | DC In , 12 V / 2A |
| Power Consumption | 24W |
| Dimensions | Standard 1u rack dimensions 122.5mm(L) x 431mm (W) x 44.3mm (H) |
| Weight | 1.2 Kg |
